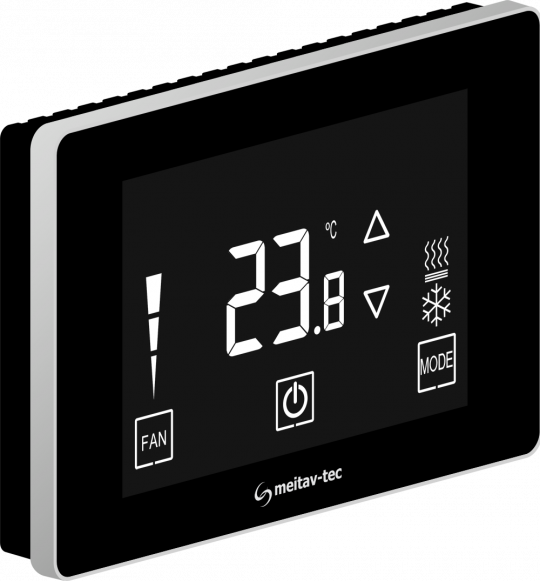

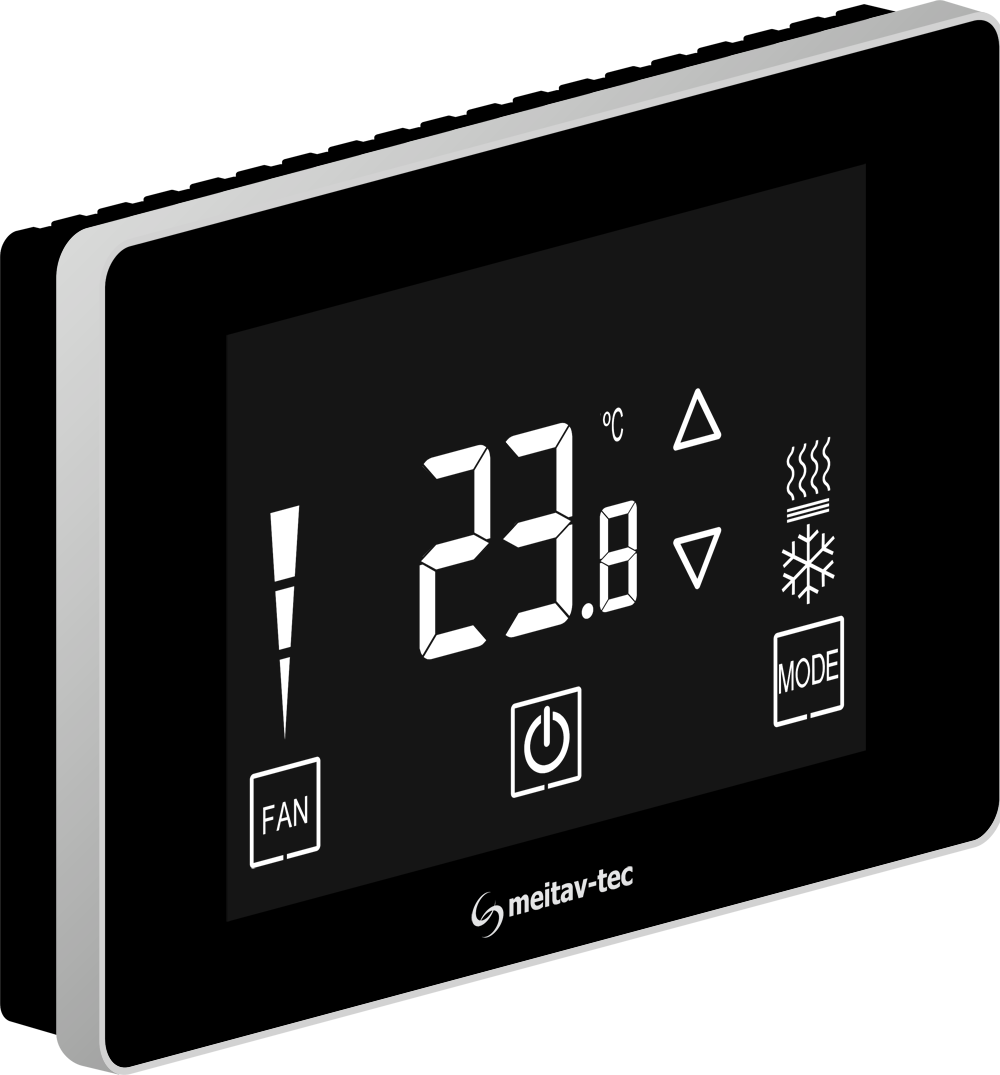

MTS-X500 Room panel for CTU B.M.S. controllers

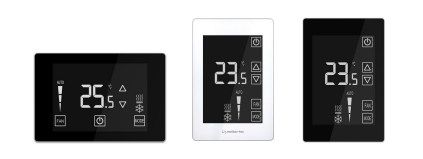

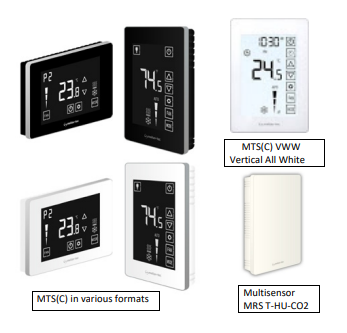

MTS/X500 Ordering Codes:
○ MTS/X500 - Horizontal panel, Black color
○ MTSV/X500 - Vertical panel, Black color
○ MTSW/X500 - Horizontal panel, White color
○ MTSVW/X500 - Vertical panel, White color
○ MTS/WM500 - Wall mounted version

General Features & Benefits
- Touch-screen stylish design, with clear, large buttons and display
- Temperature readings from the main controller (CTU) or from the room panel – selectable
- Backlit display with adjustable dimming time and level
- Flush mount installation with standard CARLON B114r boxes or similar (GW24403)
- Optional wall mounting configuration
- Optional colored frame

Note: the system modes, fan speeds and fan on demand option – depend on main controller (CTU) type.
